Planter·Seeders

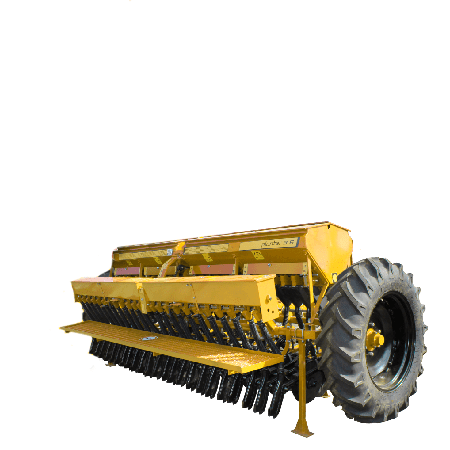

Grain drill Planter-3.6Т (СЗТ-3.6) (gearbox)
Main advantages
- 3 mm boron steel coulter disc — longer life
- Chisel coulters — simultaneous grass sowing
- Reinforced frame — does not deform or fail
- Enlarged seed box — fewer stops
Overview
About this product
The Planter-3.6T seed drill is designed for row sowing of the seeds of cereals and pulses, both separately and with simultaneous sowing of grass seeds and application of granulated mineral fertilizers.
Advantages of the Planter-3.6T seed drill
- double-disc row coulter. The coulter disc is made of borated steel 3 mm thick, which increases the durability and extends the service life of the seed drill. The coulter cuts through crop residues and sets the discs to the specified depth, which significantly improves the uniformity of emergence.
- shoe coulters. The shoe coulters are attached by links and brackets to the bodies of the rear row of disc coulters. The hinged attachment of the links allows the coulters to rise and fall easily in the vertical plane. Free-flowing but small seeds can be sown from the grass hoppers through the shoe coulters, and this method can also be used to sow the grass seed intended as a cover for cereals.
- the grass seed boxes of the seed drill are mounted on the rear beam of the frame. Reel-type grass seed metering units with group adjustment of seeding rates are attached to the bottom of the box.
- the seed metering box is enlarged by 1000 dm3, which reduces the number of stops for loading the unit. The seed drill frame has a reinforced construction that prevents deformation and breakage.
- a reinforced spring is installed on the shock absorber rod, which significantly increases the pressure on the coulter.
Specifications of the seed drill Planter-3.6T
working width - 3,6 m;number of rows of disc coulters - 36 pcs.;row spacing - 15 cm;sowing depth of disc coulters - 40-80 mm;sowing depth of shoe coulters - 20-80 mm;working speed - 9-12 km/h;output - 3.2-4.3 ha/h;width/length/height - 4300x3700x1650 mm;weight - 1540 kg;tractors with which the seed drill is aggregated - from 65 hp
Seeding rates
- for cereals and pulses - 15-400 kg/ha;
- for mineral fertilizers - 25-200 kg/ha;
- for grass - 5-90 kg/ha.
Hopper capacity
- for sowing material - 600 dm3;
- for grass - 86 dm3.
Specifications
Key machine parameters
| Brand | Planter |
|---|---|
| Equipment type | Precision planter |
| Model | Planter-3.6Т |
| Working width | 3.6 m |
| Required tractor power, hp | 65 |
| Condition | New |
| Number of rows, pcs | 36 |
| Grain hopper capacity, L | 1000 |
| Fertilizer hopper capacity, L | 1000 |
| Hopper capacity, L | 1000 |
| Operating speed, km/h | 9-12 |
| Country of origin | Ukraine |
| Required tractor power | 65 HP |
| Weight, kg | 1540 |
| Overall height, mm | 1650 |
| Overall length, mm | 3700 |
| Overall width, mm | 4300 |
| Configuration | Gearbox |
| Type | Grain |
| Seeder type | Grain |
| Row spacing, cm | 15 |
