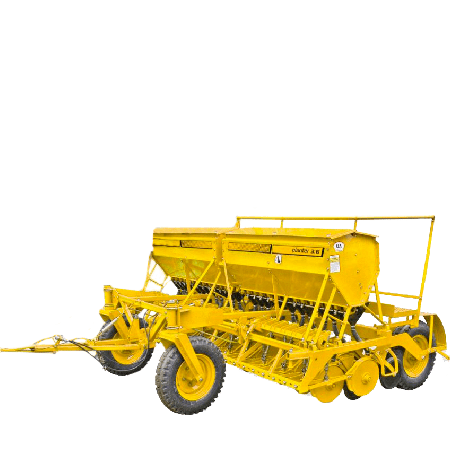

Grain drill Planter-3.6B (СЗП-3.6Б) (gearbox)

The Planter-3.6B grain drill is used for the row sowing of seed material of grain legume and cereal crops with the parallel application of granular mineral fertilizers into the rows being sown.

The Planter-3.6B grain drill is without rollers and has a coulter with an offset.

Characteristics of the Planter-3.6B grain drill:

coverage (width) - 3,6 m;number of rows - 24 pcs.;distance between rows - 15 cm;covering depth of the disc coulters - 40-80 mm;working speed - 9-12 km/h;output - 3,2-4,3 ha/h;width/length/height - 3710 х 3985 х 1755 mm;weight - 1535±46 kg;tractors with which it is aggregated - up to 85 hp Seeding rates:

- for 2802 - 15-400 kg/ha; - for fertilizer - 25-200  kg/ha.

Hopper capacity:

- for 2802 - 600 dm3; - for fertilizer - 400 dm3.
