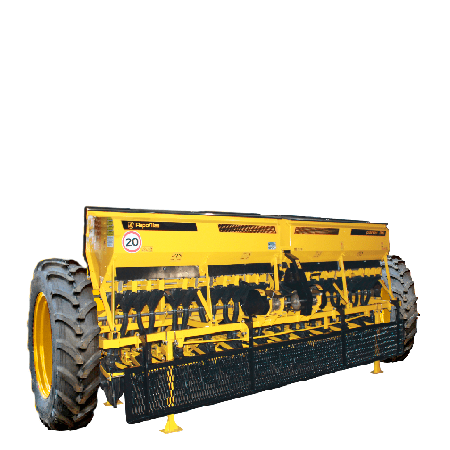

Grain drill Planter-3.6 (СЗ-3.6А) (gearbox) — yellow grain drill on large wheels, front view

Planter·Seeders

Grain drill Planter-3.6 (СЗ-3.6А) (gearbox)

No reviews yet

Main advantages

  • 3.2 mm metal thickness — low wear
  • Coulter to set depth — even through crop residues
  • Tikkurila coating — resists extreme weather

Overview

About this product

The Planter-3.6 model grain drill is a solution for the row sowing of cereal and grain legume crops and seeds of spice crops.

Features of the Planter-3.6 grain drill

  • coulter design - with an offset;
  • coulter material – high-quality steel from an Italian manufacturer;
  • the metal thickness is 3,2 mm, which makes it possible to achieve high performance indicators and a low level of wear;
  • the coulter can penetrate into the soil to a preset depth, even if it is necessary to pass through plant residues;
  • the contact and frame elements are painted with a Tikkurila coating, which is designed for extreme weather conditions and intensive mechanical impact.

Characteristics of the Planter-3.6 grain drill

coverage (width) - 3,6 m;number of lines - 24 pcs.;row spacing (width) – 15 cm;speed during operation - 9-12 km/h;output - 3,2-4,3 ha/h;length/height/width - 4300x3700x1650 mm;weight - 1380±40 kg;placement of seed and fertilizer to a depth of 40-80 mm;tractors with which the grain drill is aggregated - up to 85 hp

Sowing and its rate

  • for seed - 5-400 kg/ha;
  • for fertilizer - 25-200 kg/ha.

Hopper (capacity)

  • for seed - 453 dm3;
  • for fertilizer - 212 dm3.

Specifications

Key machine parameters

BrandPlanter
Equipment typePrecision planter
ModelPlanter-3.6
Working width3.6 m
ConditionNew
Grain hopper capacity, L1000
Fertilizer hopper capacity, L1000
Hopper capacity, L1000
Operating speed, km/h9-12
Country of originUkraine
Overall height, mm3700
Overall length, mm4300
Overall width, mm1650
ConfigurationGearbox
TypeGrain
Seeder typeGrain
Row spacing, cm15
