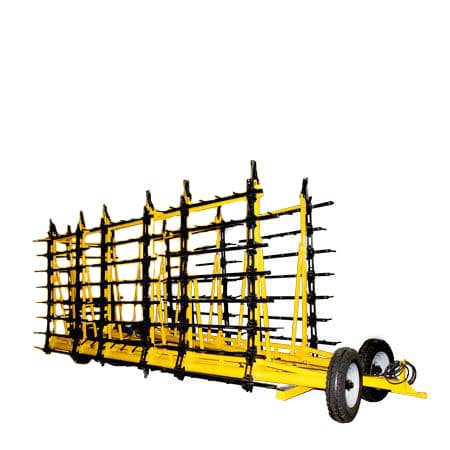

Planter hydraulic spike-tooth drag harrow БГШ-9 — yellow spike-tooth harrow on wheels, side view1 / 2

Planter·Tillage

Planter hydraulic spike-tooth drag harrow БГШ-9

No reviews yet

Main advantages

  • Combs out weeds at the white-thread stage — kills seedlings
  • Spring moisture sealing — keeps moisture in the field

Overview

About this product

The БГШ-9 harrow is used for the following types of work

  • preparation of ploughland for sowing operations and tillage of fallows
  • spring moisture conservation in fields
  • harrowing out weeds at the thread stage of development and destruction of weed seedlings;incorporation of mineral fertilizers after they have been applied to the soil
  • levelling of fields and loosening of the soil to break up capillaries after primary tillage

The harrow can be operated in all soil and climate zones, except for areas with significant stony inclusions. Soil moisture must exceed 27%, and soil hardness up to 3,5 MPa.

The БГШ-9 harrow is coupled with tractors with a power output from 180 hp, equipped with a hydraulically operated hitch system. It has 6 drag bars.

Dimensions in the working position

length - 10,75 m;

width - 9,2 m;

height - 1,37 m.

Dimensions in the transport position

length - 6,96 m;

width - 4,1 m;

height - 2,9 m.

Specifications

Key machine parameters

BrandPlanter
Equipment typeDisc harrow
ModelБГШ-9
Working width9 m
Required tractor power, hp180
ConditionNew
Number of rows, pcs6
Operating speed, km/h8-12
Country of originUkraine
Required tractor power180 HP
Weight, kg3645
Implement categoryГідравлічний зубчастий шлейфовий
Tillage depth, cm4-9
Number of working tools, pcs512
Harrows fittedWith harrows
Implement typeTrailed
Harrow typeШлейфові
Mounting typeTrailed
