Planter·Tillage

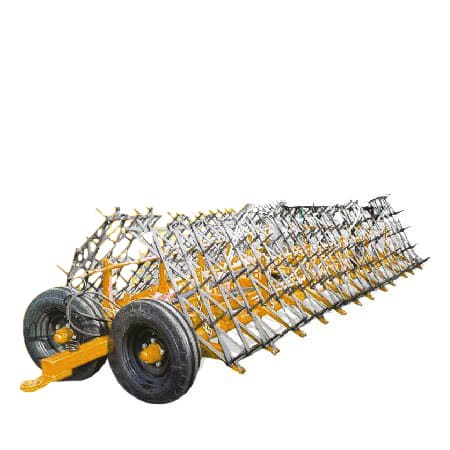

Hydraulic tine harrow Planter БГЗ-12
- Working width
- 12 m
- Required tractor power, hp
- 80
Overview
About this product
Harrow БГЗ-12 consists of the following units
A central frame with a hitch device for the tractor;Lifting wings (in the transport position), connected to the central frame by cross-pieces on bearings;4 support wheels with atmospheric-pressure tyres 6,5x16;A hydraulic system consisting of 2 hydraulic cylinders, high-pressure hoses (РВД) with breakaway couplings.
Characteristics of the БГЗ-12 harrow
Type - trailed;Productivity – 7 ha/h;Working speed – no more than 12 km/h;Transport speed – no more than 20 km/h;Grip (width) – 12 m;Number of toothed harrow sections – 12 pcs.;Working depth – 80 mm;Weight – 1520 kg;Tractor power – from 80 hp
Dimensions in the working position
length – 6,4 m;
width – 12 m;
height – 0,8 m.
Dimensions in the transport position
length – 5,8 m;
width – 3,5 m;
height – 1,4 m.
Specifications
Key machine parameters
| Brand | Planter |
|---|---|
| Equipment type | Disc harrow |
| Model | БГЗ-12 |
| Working width | 12 m |
| Required tractor power, hp | 80 |
| Condition | New |
| Number of rows, pcs | 12 |
| Operating speed, km/h | 12 |
| Country of origin | Ukraine |
| Required tractor power | 80 HP |
| Weight, kg | 1520 |
| Implement category | Hydraulic tine |
| Tillage depth, cm | 8 |
| Harrows fitted | With harrows |
| Implement type | Trailed |
| Harrow type | Tine |
| Mounting type | Trailed |
