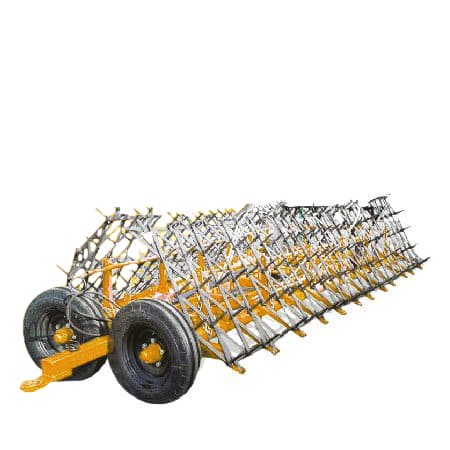

Hydraulic tine harrow Planter  БГЗ-14 — tine harrow on two transport wheels on white, side view1 / 2

Planter·Tillage

Hydraulic tine harrow Planter БГЗ-14

No reviews yet
Working width
14 m
Required tractor power, hp
80-110
All specifications

Overview

About this product

The БГЗ-14 harrow consists of the following units

A central frame with a hitch device for the tractor;Lifting wings (in the transport position), connected to the central frame by cross-pieces on bearings;4 support wheels with atmospheric-pressure tyres 6,5x16; A hydraulic system consisting of 2 hydraulic cylinders, high-pressure hoses (РВД) with breakaway couplings.

Specifications of the БГЗ-14 harrow

Type - trailed;Output - 9 ha/h;Working speed - no more than 12 km/h;Transport speed - no more than 20 km/h;Coverage (width) - 14 m;Number of tine harrow sections - 14 pcs.;Working depth - 80 mm;Weight - 1650 km;Tractor power - from 80 to 110 hp

Dimensions in the working position

length - 6,4 m;

width - 14 m;

height - 0,8 m.

Dimensions in the transport position

length - 6,8 m;

width - 3,5 m;

height - 1,4 m.

Specifications

Key machine parameters

BrandPlanter
Equipment typeDisc harrow
ModelБГЗ-14
Working width14 m
Required tractor power, hp80-110
ConditionNew
Number of rows, pcs14
Operating speed, km/h12
Country of originUkraine
Required tractor power80 HP
Weight, kg1650
Implement categoryHydraulic tine
Tillage depth, cm8
Harrows fittedWith harrows
Implement typeTrailed
Harrow typeTine
Mounting typeTrailed
