AGROLIGA TRADE·Tillage
About this product

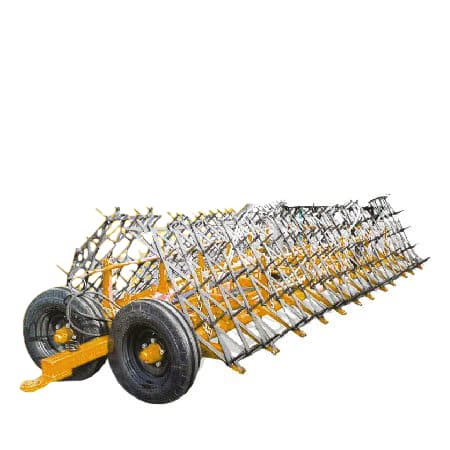

The БГЗ-18 harrow consists of the following units:
A central frame with a hitch device for the tractor;Lifting wings (in the transport position), connected to the central frame by cross-pieces on bearings;4 support wheels with atmospheric-pressure tyres 6,5x16; A hydraulic system consisting of 2 hydraulic cylinders, high-pressure hoses (РВД) with breakaway couplings. Specifications of the БГЗ-18 harrow:
Type - trailed;Output - 11 ha/h;Working speed - no more than 12 km/h;Transport speed - no more than 20 km/h;Coverage (width) - 18 m;Number of tine harrow sections - 18 pcs.;Working depth - 80 mm;Weight - 2650 km;Tractor power - from 100 to 110 hp Dimensions in the working position:
length - 6,4 m; width - 18 m; height - 0,8 m.
Dimensions in the transport position:
length - 7,8 m; width - 3,5 m; height - 1,4 m.
