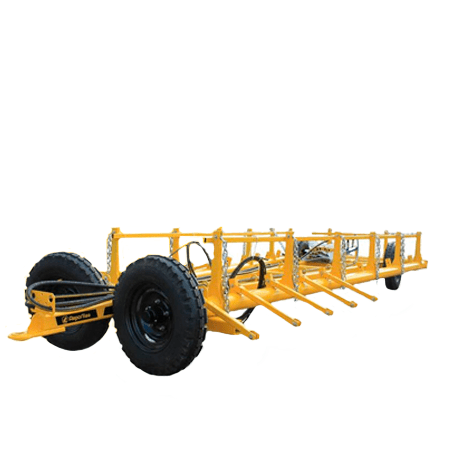

Hydraulic tine harrow Planter БГЗ-12 without harrows — yellow hydraulic harrow frame on wheels, side view1 / 2

Planter·Tillage

Hydraulic tine harrow Planter БГЗ-12 without harrows

No reviews yet
Working width
12 m
Required tractor power, hp
80
All specifications

Overview

About this product

Harrow БГЗ-12 without harrows consists of the following units:

A central frame with a hitch device for the tractor;Lifting wings (in the transport position), connected to the central frame by cross-pieces on bearings;4 support wheels with atmospheric-pressure tyres 6,5x16;A hydraulic system consisting of 2 hydraulic cylinders, high-pressure hoses (РВД) with breakaway couplings.

Characteristics of the БГЗ-12 harrow without harrows

Type - trailed;Productivity - 9 ha/h;Girth (width) - 12 m;Number of tine harrow sections - 12 pcs.;Weight - 1520 kg;Tractor power - from 80 hp

Dimensions in the working position

length - 6,4 m;

width - 12 m;

height - 0,8 m.

Dimensions in the transport position

length - 5,8 m;

width - 3,5 m;

height - 1,4 m.

Specifications

Key machine parameters

BrandPlanter
Equipment typeDisc harrow
ModelБГЗ-12
Working width12 m
Required tractor power, hp80
ConditionNew
Number of rows, pcs12
Country of originUkraine
Required tractor power80 HP
Weight, kg1520
Implement categoryHydraulic tine
Harrows fittedБез борін
Implement typeTrailed
Harrow typeTine
Mounting typeTrailed
