Planter·Tillage
Mounted disc harrow Planter БДН-1,8
Main advantages
- Chops crop residues — after harvest
- Mulching and water permeability — better soil structure
Overview
About this product

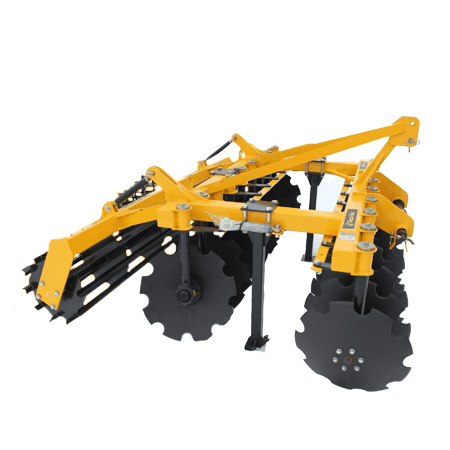

Mounted disc harrow БДН-1,8 is designed for working the soil before sowing forage and industrial crops. During post-harvest tillage it is able to chop up the residues of sown crops.
It is able to level and compact the soil, feed it and prevent erosion. It can be used for mulching the soil and plant residues, and also in order to improve the water- and air permeability of the soil.
Specifications of the БДН-1,8 harrow
Unit type - mounted;Output - up to 2,16 ha/h;Working depth - 100-140 mm;Disc angle of attack - 0-30 deg.;Number of rows - 2 pcs.;Number of cutting units - 14 pcs.;Distance between disc rows - 950 mm;Distance between disc blades - 250 mm;Diameter of working elements - 560 mm;Coverage (width) - 1,8 m;Weight - 833 kg;Tractor power - 80 hp
Dimensions in the working and transport position
length - 2355 mm;width - 2100 mm;height - 1210 mm.
Specifications
Key machine parameters
| Brand | Planter |
|---|---|
| Equipment type | Disc harrow |
| Model | БДН-1,8 |
| Working width | 1.8 m |
| Required tractor power, hp | 80 |
| Condition | New |
| Number of rows, pcs | 2 |
| Country of origin | Ukraine |
| Required tractor power | 80 HP |
| Weight, kg | 833 |
| Distance between discs (full-width tillage), cm | 25 |
| Row spacing (inter-row cultivation), cm | 95 |
| Tillage depth, cm | 14 |
| Disc diameter, mm | 560 |
| Number of working tools, pcs | 14 |
| Disc attack angle, ° | 0-30 |
| Implement type | Mounted |
| Harrow type | Disc |
| Mounting type | Mounted |
