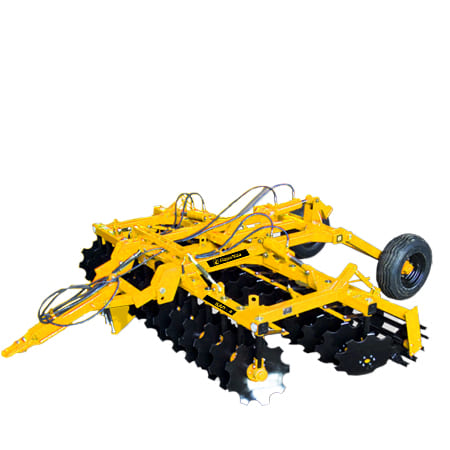

Trailed disc harrow Planter БДП-3,2 — yellow trailed disc harrow, side view1 / 2

Planter·Tillage

Trailed disc harrow Planter БДП-3,2

No reviews yet

Main advantages

  • Chops crop residues — after harvest
  • Mulching and water permeability — better soil structure

Overview

About this product

Trailed disc harrow БДП-3,2 is designed for working the soil before sowing forage and industrial crops. During post-harvest tillage it is able to chop up the residues of sown crops.

It is able to level and compact the soil, feed it and prevent erosion. It can be used for mulching the soil and plant residues, and also in order to improve the water- and air permeability of the soil.

Specifications of the БДП-3,2 harrow

Unit type - trailed;Output - up to 3,8 ha/h;Working depth - 100-140 mm;Disc angle of attack - 0-30 deg.;Number of rows - 2 pcs.;Number of cutting units - 24 pcs.;Distance between disc rows - 950 mm;Distance between disc blades - 250 mm;Diameter of working elements - 560 mm;Coverage (width) - 3,8 m;Weight - 1612 kg;Tractor power - 90 hp

Dimensions in the working position

length - 4430 mm;

width - 3350 mm;

height - 1520 mm.

Dimensions in the transport position

length - 4430 mm;

width - 3350 mm;

height - 1770 mm.

Specifications

Key machine parameters

BrandPlanter
Equipment typeDisc harrow
ModelБДП-3,2
Working width3.8 m
Required tractor power, hp90
ConditionNew
Number of rows, pcs2
Country of originUkraine
Required tractor power90 HP
Weight, kg1612
Distance between discs (full-width tillage), cm25
Row spacing (inter-row cultivation), cm95
Tillage depth, cm14
Disc diameter, mm560
Number of working tools, pcs24
Disc attack angle, °0-30
Implement typeTrailed
Harrow typeDisc
Mounting typeTrailed
