Planter·Seeders

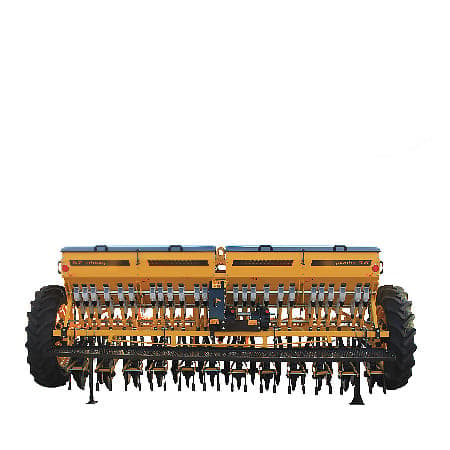

Universal grain drill Planter-4V (variator)
Main advantages
- 3 mm boron steel coulter discs — longer service life
- Variator — more accurate seeding rate
- Reinforced spring on the rod — minimum tillage
- Two seed rolls — cereals and small-seeded crops
Overview
About this product
The Planter-4V model grain drill is intended for the row sowing of seeds of cereals (wheat, rye, barley, oat) and grain legume crops (pea, bean, soybean, lentil, broad bean, grass pea, chickpea, lupin), small-seeded crops (alfalfa, rapeseed, millet, clover) with the simultaneous application of mineral fertilizers.
The Planter-4V model grain drill is equipped with a coverer and markers.
Advantages of the Planter-4V grain drill
- the coulter discs are made of boron steel 3 mm thick, which considerably increases the durability and extends the service life of the grain drill. The coulter ensures the cutting of crop residues and the penetration of the discs to a preset depth, which considerably improves the uniformity of emergence.
- the metering unit box has been increased to 1200 dm3, which makes it possible to reduce the number of stops for loading the machine. The frame of the grain drill has a reinforced construction, which makes its deformation and destruction impossible.
- the grain drill is fitted with a mechanism that regulates the gear ratios of the drive - a variator, which makes it possible to set the seeding rate more precisely.
- a reinforced spring is fitted on the shock absorber rod, which considerably increases the pressure on the coulter. This makes it possible to work under minimum tillage technology.
- owing to the universal metering unit, which has two rollers, it is possible to sow both ordinary cereal crops and small-seeded ones.
Characteristics of the Planter-4V grain drill
working speed on the main operations - 12 km/h;coverage (width) - 4 m;row spacing width - 15 cm;hopper capacity - 1200 dm3;covering depth of seed and fertilizer - 40-80 mm.
Sowing and its rates
- for seed - 15-400 kg/ha;
- for fertilizer - 25-200 kg/ha;
- for small-seeded crops - 0,50-50 kg/ha.
Specifications
Key machine parameters
| Brand | Planter |
|---|---|
| Equipment type | Precision planter |
| Model | Planter-4V |
| Working width | 4 m |
| Condition | New |
| Grain hopper capacity, L | 1200 |
| Fertilizer hopper capacity, L | 1200 |
| Hopper capacity, L | 1200 |
| Operating speed, km/h | 12 |
| Country of origin | Ukraine |
| Seed and fertilizer placement depth, mm | 40-80 |
| Configuration | Variator |
| Fertilizer application rate, kg/ha | 25-200 |
| Seeding rate, kg/ha | 15-400 |
| Type | Grain |
| Seeder type | Universal grain |
| Row spacing, cm | 15 |
