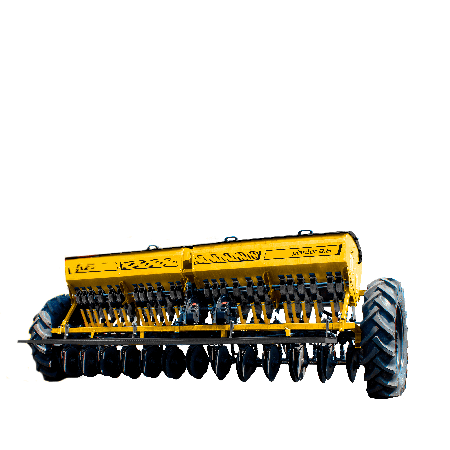

Universal grain drill Planter-3.6-0.2V (variator)

The Planter-3.6-0.2V model grain drill is intended for the row sowing of 2802 cereals (wheat, rye, barley, oat) and grain legume crops (pea, bean, soybean, lentil, broad bean, grass pea, chickpea, lupin), small-seeded crops (alfalfa, rapeseed, millet, clover) with the simultaneous application of mineral fertilizers.

Advantages of the Planter-3.6-0.2V grain drill:

1) the coulter discs are made of boron steel 3 mm thick, which considerably increases the durability and extends the service life of the grain drill. The coulter ensures the cutting of crop residues and the penetration of the discs to a preset depth, which considerably improves the uniformity of emergence.

2) the metering unit box has been increased to 1000 dm3, which makes it possible to reduce the number of stops for loading the machine. The frame of the grain drill has a reinforced construction, which makes its deformation and destruction impossible.

3) the grain drill is fitted with a mechanism that regulates the gear ratios of the drive - a variator, which makes it possible to set the seeding rate more precisely.

4) a reinforced spring is fitted on the shock absorber rod, which considerably increases the pressure on the coulter. This makes it possible to work under minimum tillage technology.

5) owing to the universal metering unit, which has two rollers, it is possible to sow both ordinary cereal crops and small-seeded ones.

Characteristics of the grain drill Planter-3.6-0.2V:

working speed on the main operations - 12 km/h;coverage (width) - 3,6 m;row spacing width - 15 cm;covering depth of 2802 and fertilizer - 10-30 mm;weight - 1334 kg;length/height/width - 4300x3700x1650 mm. Sowing and its rates:

- for 2802 - 15-400 kg/ha; - for fertilizer - 25-200 kg/ha; - for small-seeded crops - 0,50-50 kg/ha.

Hopper capacity:

- for 2802 - 620 dm3; - for fertilizer - 380 dm3.
