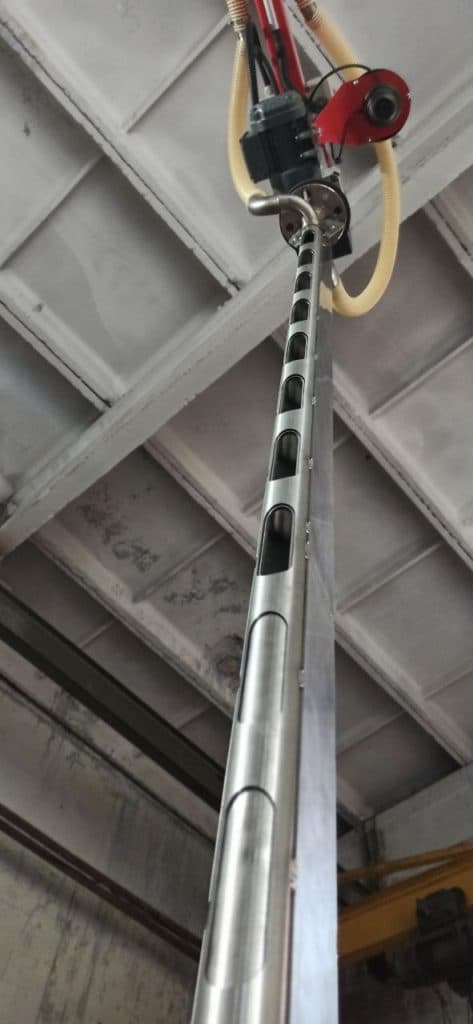

Slotted automatic two-level action probe for grain sampling

The two-level automatic slotted probe is made of stainless steel and is a design of a manual probe for taking samples with compartments for grain over the entire height of the bulk of the product. This is 100%., Simulation of sampling with a spear-shaped manual grain sampler. The standard length of the slotted probe in samplers of the Ecotec series is 2500-2700 mm.

Principle of action:

the operator, by means of the sampler control panel, immerses the slotted probe into the body of the grain truck with the product being sampled right down to the bottom, the compartments of the slotted probe being closed at this time. After the slotted probe reaches the bottom, the operator, by means of the switch button for opening the probe compartments, chooses which method of opening the probe compartments to select, there are two options for opening the compartments: The first option:

opening of only the lower half of the probe cells, the upper half at this switch setting remaining closed. This will be sampling only from the lower half of the vehicle body and the near-bottom layer. The second option:

standard sampling over the entire height of the bulk of the product. First the lower half of the cells of the slotted probe opens, then the upper half of the probe cells opens. The sample under the action of gravity fills the probe compartments in sequence, after which the compartments close and the samples are discharged into the vacuum transfer chamber at the working end of the probe. After this the blower turbine switches on, and the sample will get into the receiving hopper for samples. Installation of the slotted probe on samplers of other manufacturers

the uniqueness of the two-level slotted probe lies in the fact that it has no analogues in Ukraine or in the world, this is our own innovative development. The SLOTE PROBE two-level slotted probe is installed not only on samplers of the Ecotec series. It can be installed on automatic samplers of ANY MANUFACTURERS! Warranty:12 months;Production time:20-30 working days;Terms of payment:-50% prepayment after the signing of the contract;                                                                                          -50% after notification of readiness for shipment of the goods; Validity of the commercial offer:10 calendar days.
