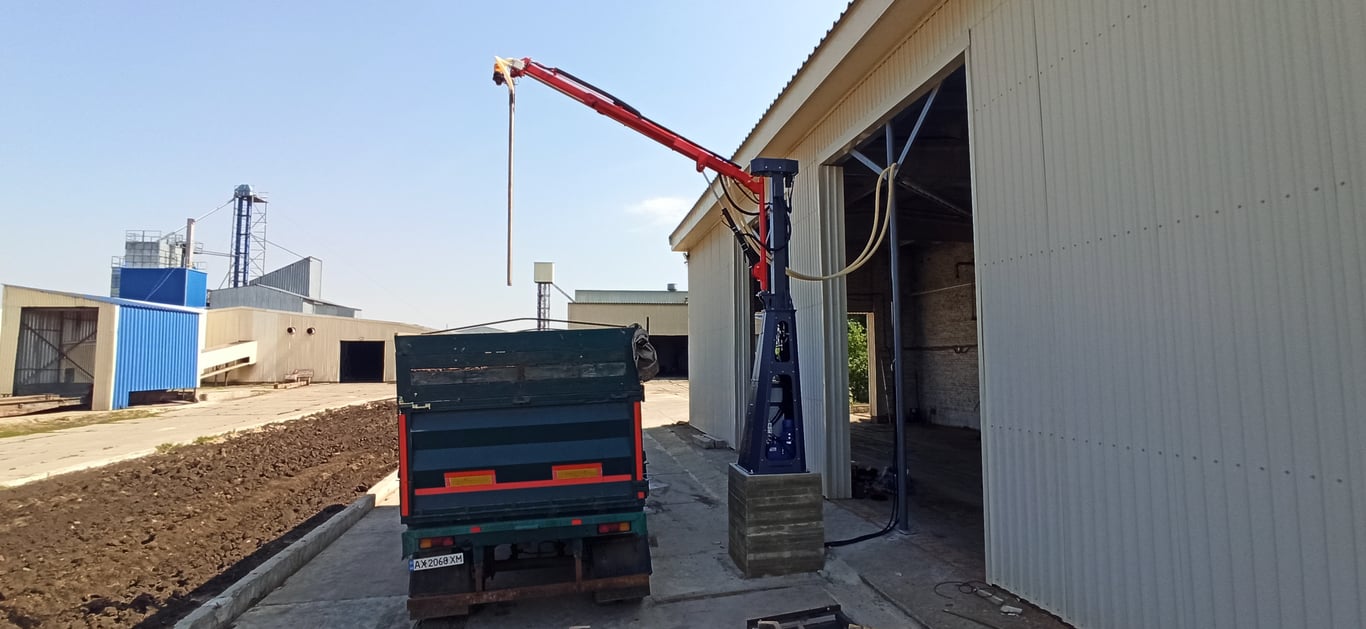

Automatic grain sampler Ecotec Standart 270 — boom arm on a column beside a warehouse, side view1 / 3

Ecotec·Grain Handling

Automatic grain sampler Ecotec Standart 270

No reviews yet

Main advantages

  • Sampling after plunging into the grain — undistorted sample
  • 120 bar oil unit — presses through wet product
  • Increased safety margin — service life over 10 years
  • Oil heating system — works in harsh climates

Overview

About this product

The Ecotec STANDART 270 automatic grain sampler is adapted to the conditions of sampling from large trucks, with trailers and with raised sides. This sampler model is designed with an increased strength margin of the structure and of the drives for work in harsh climatic conditions, with a service life of more than 10 years.

The Ecotec Standart 270 automatic sampler is made traditionally reliably, taking into account overloads and unforeseen working conditions. Also, at the choice of the user, all models of the samplers produced by our company, can be equipped with one of three variants of probes for sampling (twin-flow, slotted or auger).

Accordingly, for each design the length can be additionally increased, as standard all samplers are supplied with a twin-flow probe 2700 mm long. All probes are made exclusively of stainless steel.

The working algorithm of the sampler with pneumatic feed/removal of the sample starts sampling only after immersion in the grain down to the floor of the vehicle body. In this way, the sample taken reflects the composition 100% and does not distort the qualitative composition of the sample throughout the sampling depth.

The Ecotec STANDART 270 is ideally suited for intensive and continuous use and can work with rotation through 270 degrees on double truck lanes.

Included

  • sampler assembly;
  • telescopic boom - 2.34 - 4.44 m;
  • receiving hopper for the samples;
  • turbine 2.2 kW with filter;
  • pipe for transporting the samples – 30 m;
  • twin-flow stainless steel probe 2700 mm;
  • cabling – 30 m;
  • control panel;
  • automation kit;
  • stand for the turbine;
  • parking of the sampler;
  • oil with a high viscosity index - 20 l;
  • warning sound signal for vehicles;
  • warning light signal for vehicles;
  • video surveillance system of the sampling zone (monitor and camera);
  • voice announcement system;
  • smooth rotation system;
  • cable carrier on the telescopic boom;
  • oil station 120 Bar(100% penetration even of the wettest product);
  • oil heating system;
  • automatic parking of the sampler with a choice of the side;
  • packaging.

Warranty:12 months;Production time:20-30 working days;Terms of payment:-50% prepayment after signing the contract;                                                                                                      -50% after notification of readiness to ship the goods;Validity of the commercial offer:10 calendar days.

Specifications

Key machine parameters

BrandEcotec
Equipment typeGrain handling
ConditionNew
Telescopic cantilever boom reach2,34 - 4,44 м; 2,34 - 4,44 m
Sample conveying distanceдо 40 м; up to 40 meters
Operating temperature range-25 °C + 50 °C
Probe length2,70 м; 2.70 m
Power supply380 В, три фази; 380 В, три фазы; 380 W
Cantilever boom rotation angle250 ° - 270 °
Probe materialнержавіюча сталь; нержавеющая сталь; stainless steel
Support materialсталь (порошкове покриття); сталь; steel
Hydraulic unit power120 БАР; 120 Bar
Hydraulic drive2200 Вт; 2200 W
Pneumatic turbine drive2200 Вт; 2200 W
