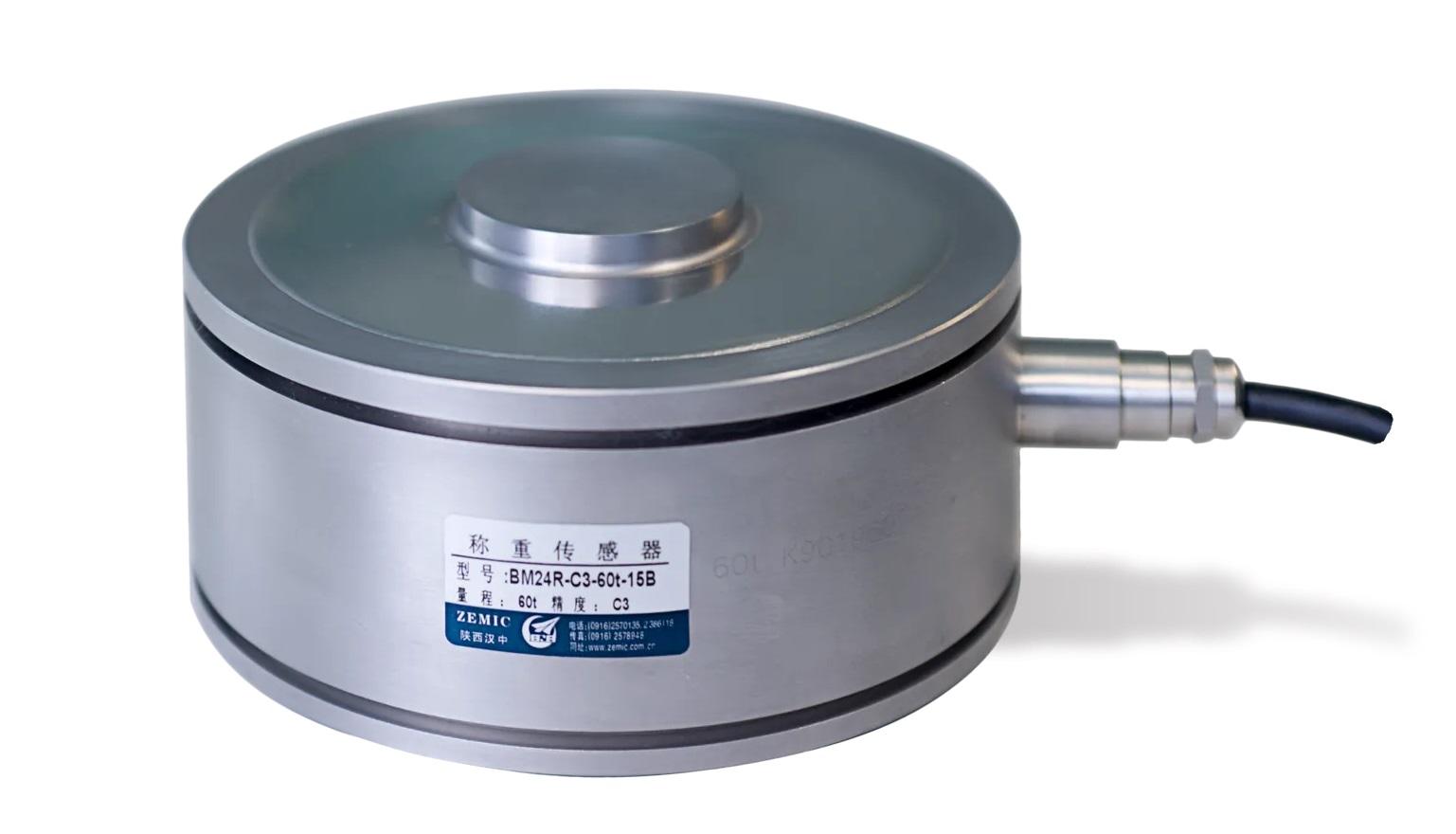

Load cell Zemic BM24R
Main advantages
- Laser-welded housing — fully moisture-proof
- Alkaline and acidic environments — harsh conditions
- Compact, low height — quick installation
Overview
About this product
BM24R — a strain-gauge load cell of the diaphragm type (washer).
The diaphragm type of load cell is used for the manufacture of hopper, truck and railway scales, and also in other weighing and dosing systems where ordinary load cells cannot be installed on account of their large overall dimensions. Thanks to its high metrological characteristics, this type of load cell is widely used in many industrial weighing systems.
The BM24R load cell can be used in harsh industrial conditions (alkaline and acidic environments).
The body is made of stainless steel with the use of laser welding, the protection class of the load cell is IP68 (complete dust and moisture protection).
Recommended for use at meat-processing plants and dairy plants. The compactness and low height of the BM24R provide quick and reliable installation.
Specifications
Key machine parameters
| Brand | Zemic |
|---|---|
| Equipment type | Scales |
| Condition | New |
| Accuracy class | C3 |
| Maximum load, MAX t | 0,060 |
| Material | stainless steel |
| Operating temperature range, ℃ | from -35 to +70 |
| Degree of protection | IP68 |
