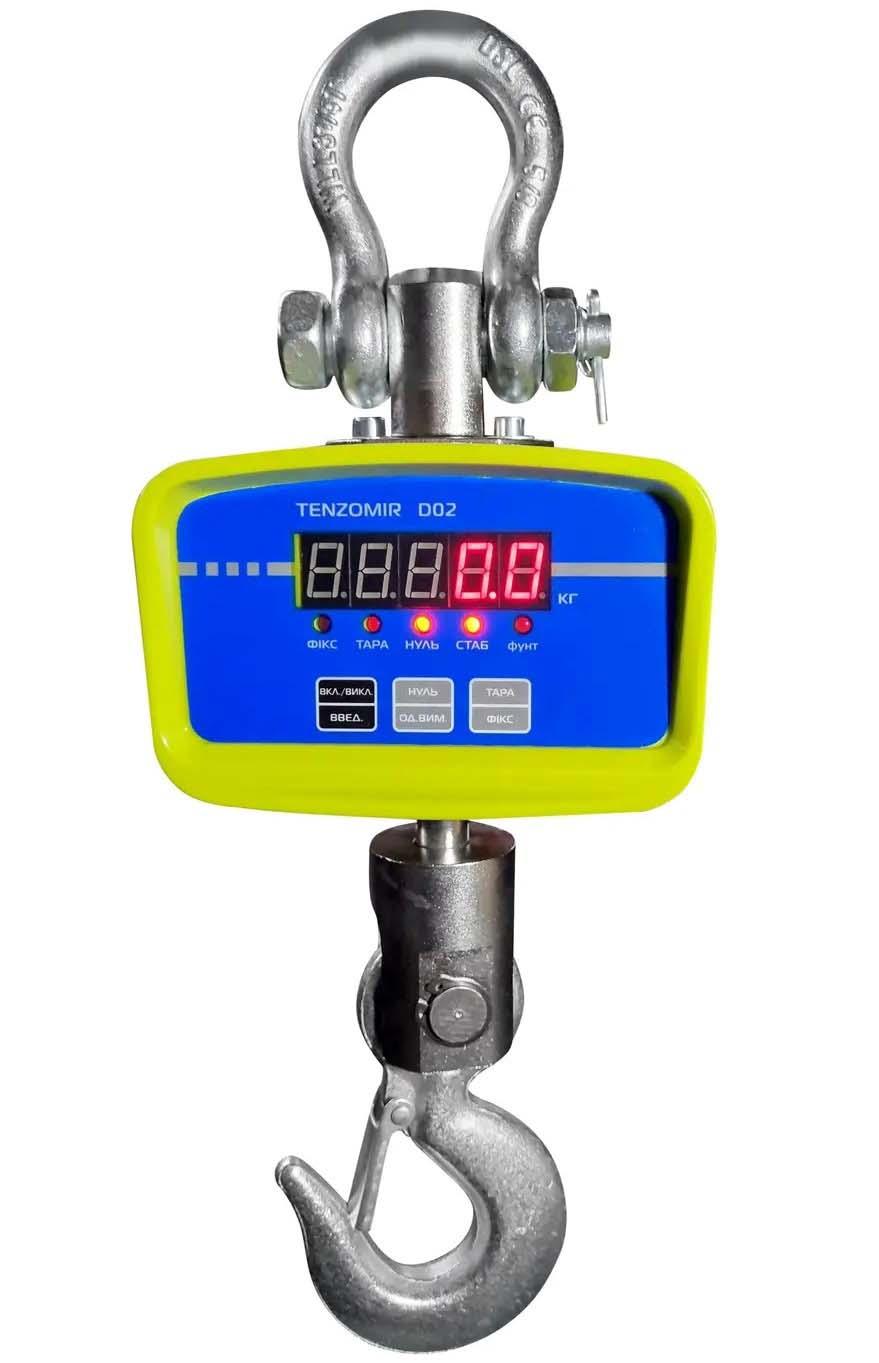

VAGAR Crane scales Tenzomir D02 — crane scale with a hook and a display, front view

VAGAR·Weighing Equipment

Crane scales Tenzomir D02

No reviews yet

Main advantages

  • Impact-resistant plastic housing — protects the electronics
  • Automatic zero tracking — stable zero
  • Infrared remote up to 10 m — control from a distance
  • Overload alarm — protects the scales

Overview

About this product

Crane scales (suspended scales) are designed for static weighing of a load during loading or unloading by a crane. Suspended scales make it possible to speed up considerably the process of receiving and issuing raw materials and finished products.

The body of this model of scales is made of impact-resistant plastic and reliably protects the electronics against mechanical damage.

A shockproof plastic body;A load cell of alloy steel;Automatic zero tracking;An infrared remote control unit;A light-emitting diode display 20 mm, character height 15 mm.

Fields of application

Construction, the chemical and metallurgical industry, railway stations, sea and river ports, metal depots, agricultural warehouses.

Technical specifications

Accuracy class: OIML III;Zero setting range: no more than 4% of Max;Maximum permissible load: 120% Max;Critical load: 500% Max;Built-in replaceable battery 3,7 V/2,6 Ah;Charger for the scales 4,5 V/0,5 A;Range of the infrared remote control unit in direct line of sight: up to 10 m.

Functions

Zero function (Zero);Taring function;Mass averaging function (HOLD);Load alarm when the weighing results are exceeded;Digital calibration;Choice of the unit of measurement;Fixing of the scale readings after the load is removed;Discreteness reduction function.

Dimensions

Max, kg

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

H(mm)

Weight, kg

Dimensions in the packaging, cm

1 000

51

98

27

148

98

400

3,1

30x25x13

2 000

51

98

33

148

98

415

3,3

30x25x13

Delivery set

Crane scales (scales, hook, loop);Remote control unit (infrared);Charger for the scales;Operating manual;Transport packaging.

Specifications

Key machine parameters

BrandVAGAR
Equipment typeScales
ConditionNew
Display character height (readout), mm15
Overall dimensions, mm300х250х130
Scale interval (d=e), kg0,5
Maximum weighing limit Max, kg1000
Minimum weighing limit Min, kg10
Degree of protectionIP54
TypeCrane
Continuous battery run time, hmore than 80
