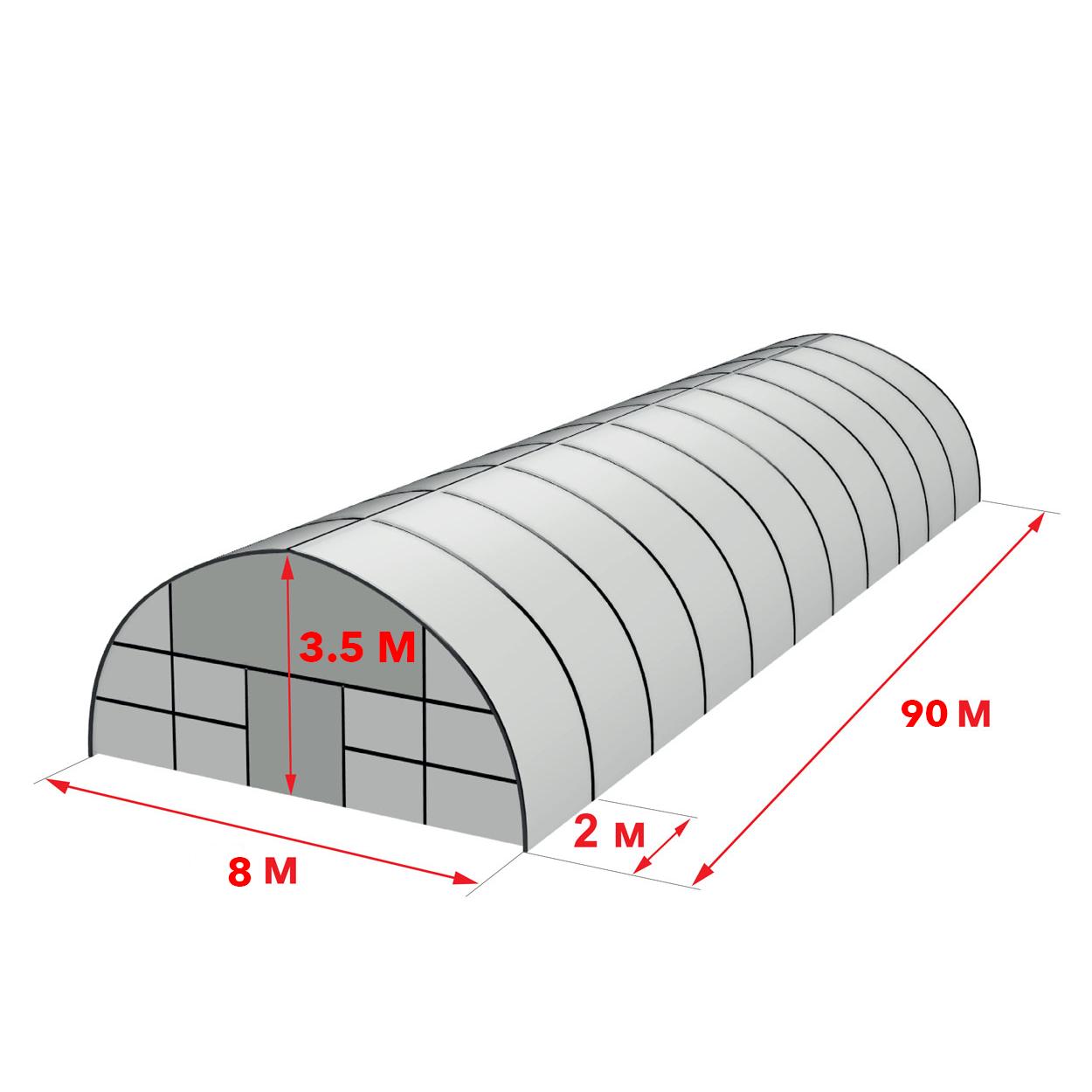

Greenhouse 8 by 90 m made of galvanized steel Double film — greenhouse drawing with marked dimensions1 / 3

Greenhouses

Greenhouse 8 by 90 m made of galvanized steel Double film

No reviews yet

Main advantages

  • Air gap between film layers — less heat loss
  • Ø57 mm galvanized frame — corrosion protection
  • Arched shape — withstands snow and wind

Overview

About this product

Greenhouse 8×90 m made of galvanized steel — a farm arched structure with double filmGreenhouse 8 by 90 metres is a professional industrial structure for growing crops at any time of year. The base is made of galvanized round tube Ø57 mm with a wall thickness of 1,4 mm, which provides stability, strength and a long service life without corrosion.

The arched shape distributes the snow and wind load evenly, so the greenhouse withstands even difficult weather conditions.

The covering consists of two layers of greenhouse film 150 µm thick with a UV stabilizer. An air gap forms between the layers and reduces heat loss by up to 40%, creating a “thermos” effect. This solution allows the greenhouse to be used year-round — both in commercial farming and in large agricultural complexes.

Advantages of the greenhouse Double film 150 µm — reduced heat loss and a stable temperature inside the greenhouse. Galvanized frame Ø57 mm — high rigidity, anti-corrosion protection, service life of more than 10 years.

Arched shape — ideal for large areas and industrial growing. Arch spacing 2 m — optimal strength with minimal use of metal.

Suitable for year-round use — from seedlings to winter growing of vegetables.Technical specifications Width: 8 m Length: 90 m Height: 3,5 m Number of arches: 46 pcs. Spacing between arches: 2 m Frame material: galvanized round tube Ø57×1,4 mm Covering: double film 150 µm with UV stabilizer Shape: arched Frame warranty: 10 yearsAssembly and delivery Telescopic assembly — without welding, all elements slot into one another.

Fasteners and assembly instructions are included. An inflation system between the film layers can be installed to maintain a stable temperature.

Delivery across Ukraine: pickup from Lutsk or delivery by a carrier.Greenhouse 8×90 m with double film is a reliable and energy-efficient structure for farmers who aim to obtain a stable harvest and minimize heating costs in the cold season.

Specifications

Key parameters

TypeGreenhouse
Width8 m
