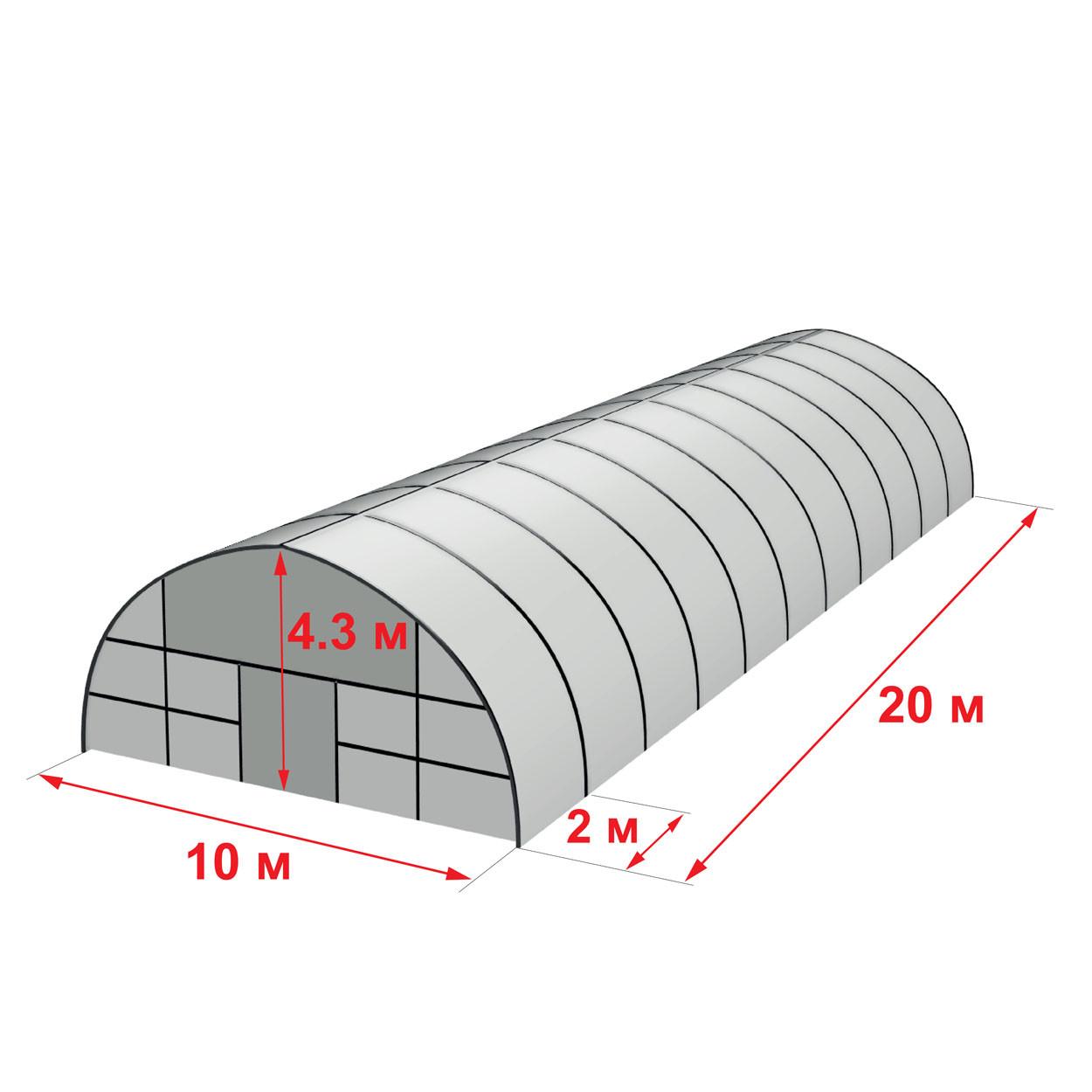

Greenhouse 10 by 20 m of galvanised steel Double-layer film — tunnel greenhouse drawing with dimension arrows, side view1 / 6

Greenhouses

Greenhouse 10 by 20 m of galvanised steel Double-layer film

No reviews yet

Main advantages

  • Double-layer cover — 30–40% better heat insulation
  • Ø57 mm galvanized tube — corrosion-resistant
  • Telescopic assembly — installation without welding
  • 4.3 m height — irrigation systems can be installed

Overview

About this product

Greenhouse 10×20 m of galvanised steel — arched farm greenhouse with double-layer filmGreenhouse 10 by 20 metres with double-layer film is an energy-efficient structure of professional level that provides a stable microclimate for growing vegetables, greens, seedlings, flowers and berries. The frame is made of galvanised round tube Ø57 mm (wall thickness 1,4 mm), which guarantees high strength, corrosion resistance and a service life of more than 10 years.

Thanks to the height of 4,3 m, the greenhouse is convenient to maintain and allows ventilation or drip irrigation systems to be installed.

The main advantage of the model is the double-layer covering of 150 µm film with an air gap that creates a thermos effect. This provides 30–40% better thermal insulation compared with single-layer models, which is especially important for winter or off-season growing.

Advantages of the structure Double-layer inflated film — improved heat retention and protection against temperature fluctuations. Frame of galvanised tube Ø57 mm — strong, not subject to rust, withstands snow and wind loads.

Arched shape — optimal for even lighting and reduced snow accumulation. Quick assembly without welding — telescopic system for joining the elements.

Possibility of upgrading — side ventilation, reinforced trusses, additional doors or transoms.Technical characteristics Width: 10 m Length: 20 m Height: 4,3 m Arch spacing: 2 m Number of arches: 11 pcs. Frame material: galvanised round tube Ø57×1,4 mm Covering: double-layer film 150 µm with UV stabiliser Shape: arched Frame warranty: 10 yearsDelivery and installation Made in Ukraine — the greenhouse is made to order.

Delivery throughout Ukraine: pickup from Lutsk or via a transport company. Included: fasteners, instructions and an installation diagram.Greenhouse 10×20 m with double-layer film is an ideal solution for year-round growing of crops with minimal heat loss and maximum reliability.

Specifications

Key parameters

TypeGreenhouse
Width10 m
FilmDouble-layer film
