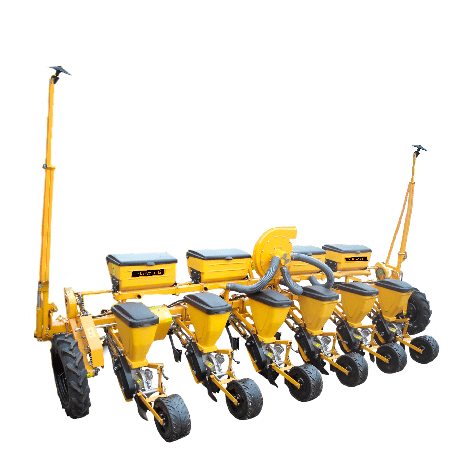

Universal row-crop seeder Planter-6 М (UPS-6, Vesta-6) — yellow row-crop seeder with hoppers on a white background

Planter·Seeders

Universal row-crop seeder Planter-6 М (UPS-6, Vesta-6)

No reviews yet

Main advantages

  • High dual-circuit drive — no skips
  • Fan overrunning clutch — seed does not drop out
  • Parallelogram linkage — uniform depth
  • Plastic hoppers — no deformation from fertilizer

Overview

About this product

Seed drill Planter-6 M is a universal pneumatic seed drill designed for precision sowing of calibrated seed: maize, sunflower, castor bean, sorghum, soybean, and also seed of fodder beans: soybean, haricot bean and lupin, with simultaneous application of granulated in the rows, separately from the seed.

Advantages of the Planter-6 M seed drill

  • each section has a double-circuit drive located much higher than on seed drills of the old design. This design prevents the section drive chain from coming off and thus eliminates skips. In combination with the new drive protection system, this ensures efficient operation even on weedy fields.
  • to create a stable vacuum in the pneumatic system, the seed drill is equipped with a rotary fan that is powered directly from the tractor power take-off shaft through a cardan shaft at a speed of 540 revolutions per minute. The new-model fan has an overrunning clutch, so that when turning, after the engine speed has been reduced, the fan keeps running by inertia and the seed does not fall off the disc. It is aggregated with tractors of traction class from 1,4 t of tractive force (MTZ-80 and Belarus-1221). The seed drill places the seed in the soil while observing the specified final density. The pneumatic metering unit of the seed drill reduces the percentage of seed crushing by almost half compared with the mechanical method of sowing. The design of the metering unit makes it possible to achieve accurate sowing of the seed. The metering unit also has an inspection window. The parallelogram mounting of the sections allows them to follow the soil contour, which affects the uniformity of sowing depth.
  • the hoppers are made of strong plastic (they do not deform, do not crack with temperature changes and require no additional treatment). The frame acts as a receiver and is the vacuum chamber for the pneumatic system. The frame beam is reinforced (80x80).
  • mineral fertilizers are applied separately from the seed through separate anchor coulters. Plastic hoppers are used for the fertilizers, which rules out deformation from the chemical action of the fertilizers.
  • the wheels are located at the edges of the unit and have a tread that provides the best engagement of the wheels with the soil.
  • the specially designed herringbone tread pattern provides soil firming and uniform sowing to the specified depth and, as a result, uniform emergence.

Specifications of the Planter-6 M seed drill

seed drill type - mounted;number of sections - 6;row spacing - 70 cm;working speed - 3,6-9 km/h;weight - 1168 kg;seed hopper capacity - 121,2 dm3;fertilizer hopper capacity - 136 dm3;dimensions - 1700?4900?1430mm.

Specifications

Key machine parameters

BrandPlanter
Equipment typePrecision planter
ModelPlanter-6 М
Working width4.2 m
ConditionNew
Number of rows, pcs6
Grain hopper capacity, L121,2
Fertilizer hopper capacity, L136
Operating speed, km/h3,6-9
Country of originUkraine
Weight, kg1168
Overall height, mm1430
Overall length, mm1700
Overall width, mm4900
TypeRow-crop
Implement typeMounted
Seeder typeУніверсальна просапна; Навісна
Row spacing, cm70
Mounting typeMounted
