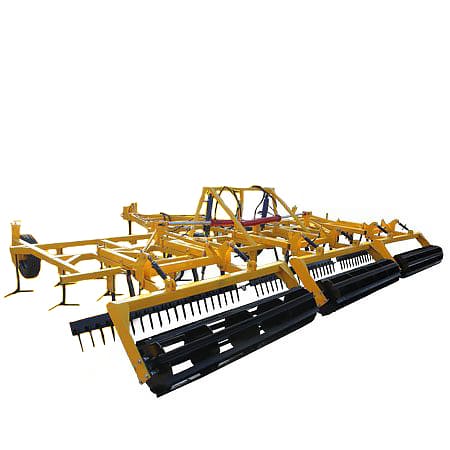

Field cultivator КПС-6S

Cultivator КПС-6S is designed for continuous pre-sowing tillage of the soil and for the tillage of fallows with simultaneous harrowing. It is used in all agro-climatic zones, on all soil types (except stony ones), prone to wind and water erosion. Effective use of the cultivators for the tillage of fallows, pre-sowing cultivation of the soil on small-contour plots.

Continuous-tillage cultivator КПС-6S is equipped with an S-shaped Bellota tine, harrows and a roller.

Characteristics of the КПС-6S cultivator:

unit type - trailed;output - 3,0-3,1 ha/h;working speed - up to 12 km/h;transport speed - up to 20 km/h;coverage (width) - 6300 mm;working depth - 6-12 cm;number of flat-cutting tines - 15 pcs.;coverage width of the flat-cutting tine - 330 mm;number of combs and packer drums (Г/Б) - 3/3 pcs.;number of tine harrows - 6 pcs.;tractor power - not less than 80 hp Dimensions in the working position:

- length - 4470 mm; - width - 6300 mm; - height - 1265 mm.

Dimensions in the transport position:

- length - 4470 mm; - width - 4220 mm; - height - 2100 mm.
