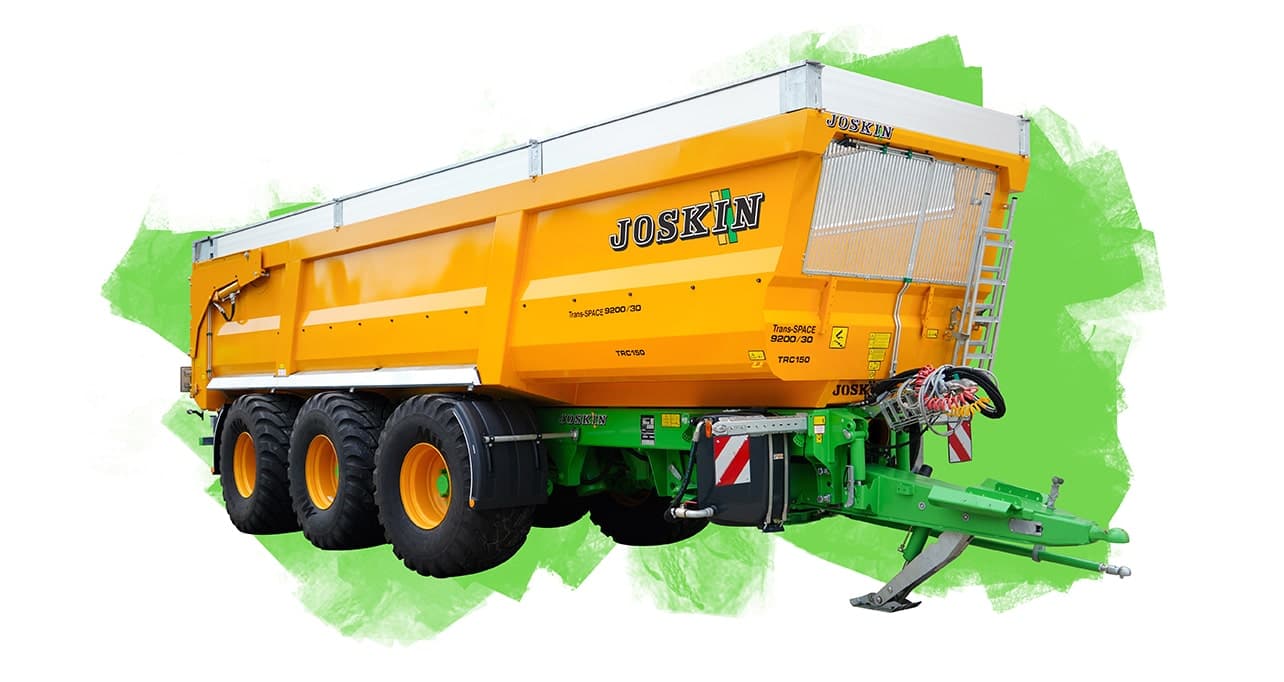

Tipping trailer JOSKIN TRANS-SPACE
Large monocoque tipping trailer on two or three axles for hauling high volumes of crops and other loads.
Main advantages
- 18.1 to 30.92 m³ DIN body — thirteen versions
- 25 to 100 cm extensions — more body volume
- 125 or 150 cm side walls — suits varied loads
- Dual wall height on 9200/30TRC150 — conveyor loading
Size
TRANS-SPACE 6500/18BC125
- Load volume
- 18.1 m³
- Number of axles
- 2
- Storage capacity
- 18 t
Overview
About this product
The TRANS-SPACE is a large agricultural monocoque tipping trailer on two or three axles, with technically permissible payloads from 18 to 26 t. The body comes with side walls in two heights, and optional aluminium extensions considerably increase the volume for even larger loads.
One version combines both wall heights in a single body, which helps when loading from a conveyor, for example during the potato harvest.
Sizes
TRANS-SPACE sizes
| Size | Load volume | Number of axles | Storage capacity |
|---|---|---|---|
| 18.1 m³ | 2 | 18 t | |
| 21.94 m³ | 2 | 18 t | |
| 19.4 m³ | 2 | 20 t | |
| 23.53 m³ | 2 | 20 t | |
| 20.7 m³ | 2 | 22 t | |
| 25.12 m³ | 2 | 22 t | |
| 20.7 m³ | 3 | 24 t | |
| 25.12 m³ | 3 | 24 t | |
| 22.7 m³ | 3 | 26 t | |
| 27.57 m³ | 3 | 26 t | |
| 29.25 m³ | 3 | 26 t | |
| 25.7 m³ | 3 | 26 t | |
| 30.92 m³ | 3 | 26 t |
Specifications
Key machine parameters
| Brand | JOSKIN |
|---|---|
| Equipment type | Trailer |
| Model | TRANS-SPACE |
| Condition | New |
| Load volume | 18.1 m³ |
| Number of axles | 2 |
| Storage capacity | 18 t |
