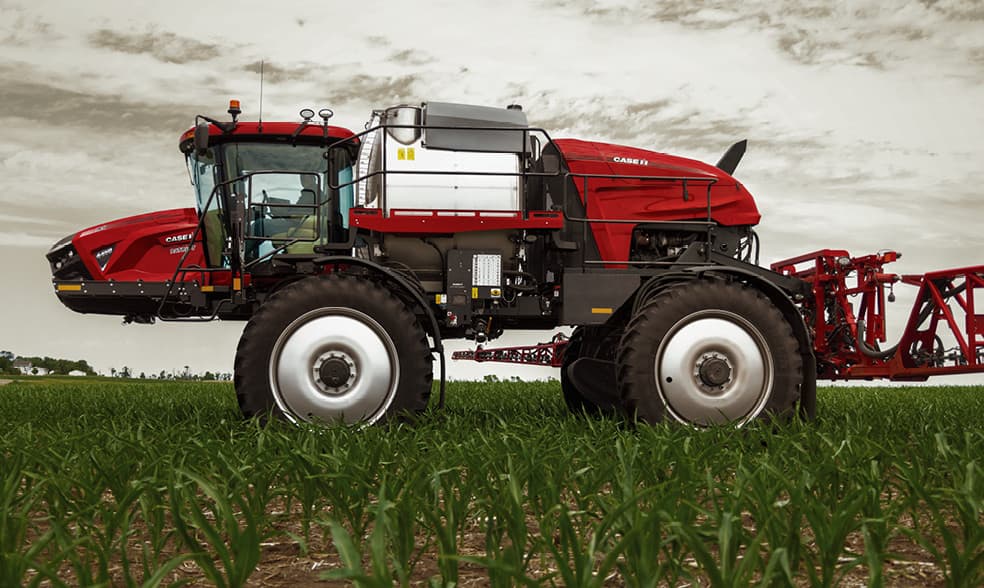

Self-Propelled sprayer Case IH Patriot 4450
Self-propelled sprayer with a tank of about 6,000 L, a 390 hp engine and hydrostatic four-wheel drive.
Main advantages
- 6,057 L tank — fewer refills
- 390 hp engine — power reserve
- 142 cm clearance — treats tall crops
- Independent wheel suspension — steadier boom
- Up to 59.5 km/h — fast transfers
Overview
About this product
A Patriot self-propelled sprayer with a 8.7 L six-cylinder Case IH FPT engine and hydrostatic drive to all four wheels with traction control. The stainless steel tank and stainless boom are offered in several boom lengths.
Suspension is independent at each wheel, and crop clearance is high. The cab has automatic climate control and an air-suspension operator seat.
Specifications
Key machine parameters
| Brand | Case IH |
|---|---|
| Equipment type | Self-propelled sprayer |
| Model | Patriot 4450 |
| Power | 390 HP |
| Condition | New |
| Drive | 4WD |
| Engine make | FPT |
| Cylinders | 6 |
| Engine displacement | 8.7 L |
| Max torque | 1706 N·m |
| Emission stage | Tier 4 Final |
| Transmission | Hydrostatic |
| Top speed | 59.5 km/h |
| Wheelbase | 4064 mm |
| Weight | 15295 kg |
| Fuel tank | 568 L |
| Operator station | Cab |
| Tank capacity | 6057 L |
| Boom width | 41.1 m |
