Case IH·Tractors

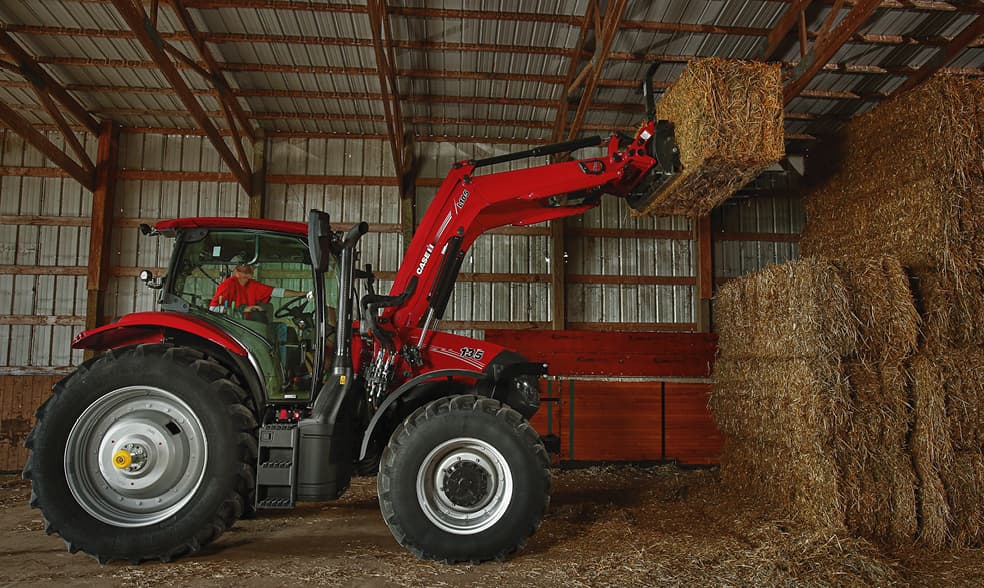

Utility tractor Case IH Maxxum 135
Utility wheeled tractor of 135 hp with a four-cylinder Stage V engine and four-wheel drive.
Main advantages
- 135 hp engine — pulling reserve
- Power boost mode — up to 169 hp
- Up to 110 PTO hp — heavier implements
- CVXDrive option — smooth speed changes
- PFC hydraulics — fast implement response
Overview
About this product
A higher-output option in the Maxxum line, with a four-cylinder FPT engine that meets Stage V. The engine has a power boost mode for short peaks.
Two transmissions are available: a dual-clutch type and the continuously variable CVXDrive. The hydraulics use pressure and flow compensation, and the PTO shifts between two speeds.
Specifications
Key machine parameters
| Brand | Case IH |
|---|---|
| Equipment type | Tractor |
| Model | Maxxum 135 |
| Power | 135 HP |
| Condition | New |
| Drive | 4WD |
| Engine make | FPT |
| Cylinders | 4 |
| Engine displacement | 4.5 L |
| Emission stage | Stage V |
| Forward gears | 23 |
| Reverse gears | 23 |
| Top speed | 40 km/h |
| PTO power | 110 HP |
| PTO speeds | 540 / 1000 |
| Hydraulic flow | 150 L/min |
| Lift capacity | 3170 kg |
| Wheelbase | 2642 mm |
| Weight | 6160 kg |
| Fuel tank | 215 L |
| Operator station | Cab |
