E.S.·Transmission
649934 Splined bushing z 22
Main advantages
- Heat-treated part — strength and wear resistance
- Eases assembly of units — better repairability
Overview
About this product
Spare part for the drive of Claas grain combine harvesters.
Purpose:
Ensuring the transmission of torque between two coaxial shafts. Facilitation of the process of assembling units and assemblies during manufacture and an increase in the maintainability of the machinery.
Used to replace worn or damaged parts in the course of repair and restoration work.
Properties:

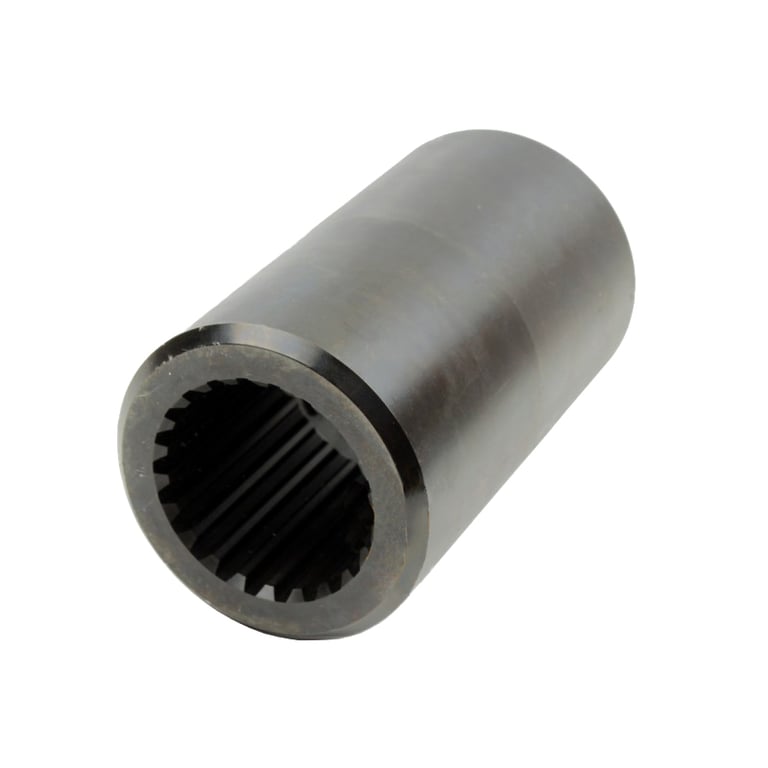

A steel product in the form of a hollow cylinder with splines cut in the central hole and mounting elements on the side surface. The part is heat-treated to ensure increased strength and wear resistance.
Specifications
Part & fitment
| Brand | E.S. |
|---|---|
| Part type | Transmission |
| OEM number | 649934 |
| Fits brand | CLAAS |
| Compatible machine models | Claas, CLAAS COMMANDOR 114CS, CLAAS COMMANDOR 115CS, CLAAS DOMINATOR 108 S/SL, Claas DOMINATOR 118, CLAAS DOMINATOR 130, CLAAS DOMINATOR 140, CLAAS DOMINATOR 150, CLAAS DOMINATOR 78, CLAAS DOMINATOR 78S, CLAAS DOMINATOR 88, Claas DOMINATOR 88VX, CLAAS DOMINATOR 98, Claas DOMINATOR 98VX, CLAAS JAGUAR 685 SL, CLAAS JAGUAR 690 SL, CLAAS JAGUAR 695 SL, CLAAS JAGUAR 820, CLAAS JAGUAR 840, CLAAS JAGUAR 860, CLAAS JAGUAR 880, CLAAS MEGA 202, CLAAS MEGA 203, CLAAS MEGA 204, CLAAS MEGA 204 AC, CLAAS MEGA 208, CLAAS MEGA 208 AC, CLAAS MEGA 218, CLAAS MEGA II 202 II, CLAAS MEGA II 203 II, CLAAS MEGA II 204 II, Claas MEGA II 208 II, Claas MEGA II 218 II |
| Weight, kg | 1,6 |
| Country of origin | Turkey |
| Inner diameter (mm) d | 45 |
| Inner diameter (mm) d1 | 40 |
| Mounting hole diameter (mm) Dm | 4,5 |
| Length (mm) L | 113,5 |
| Outer diameter (mm) D | 65 |
| Number of mounting holes, N | 1 |
| Number of splines, F | 22 |
