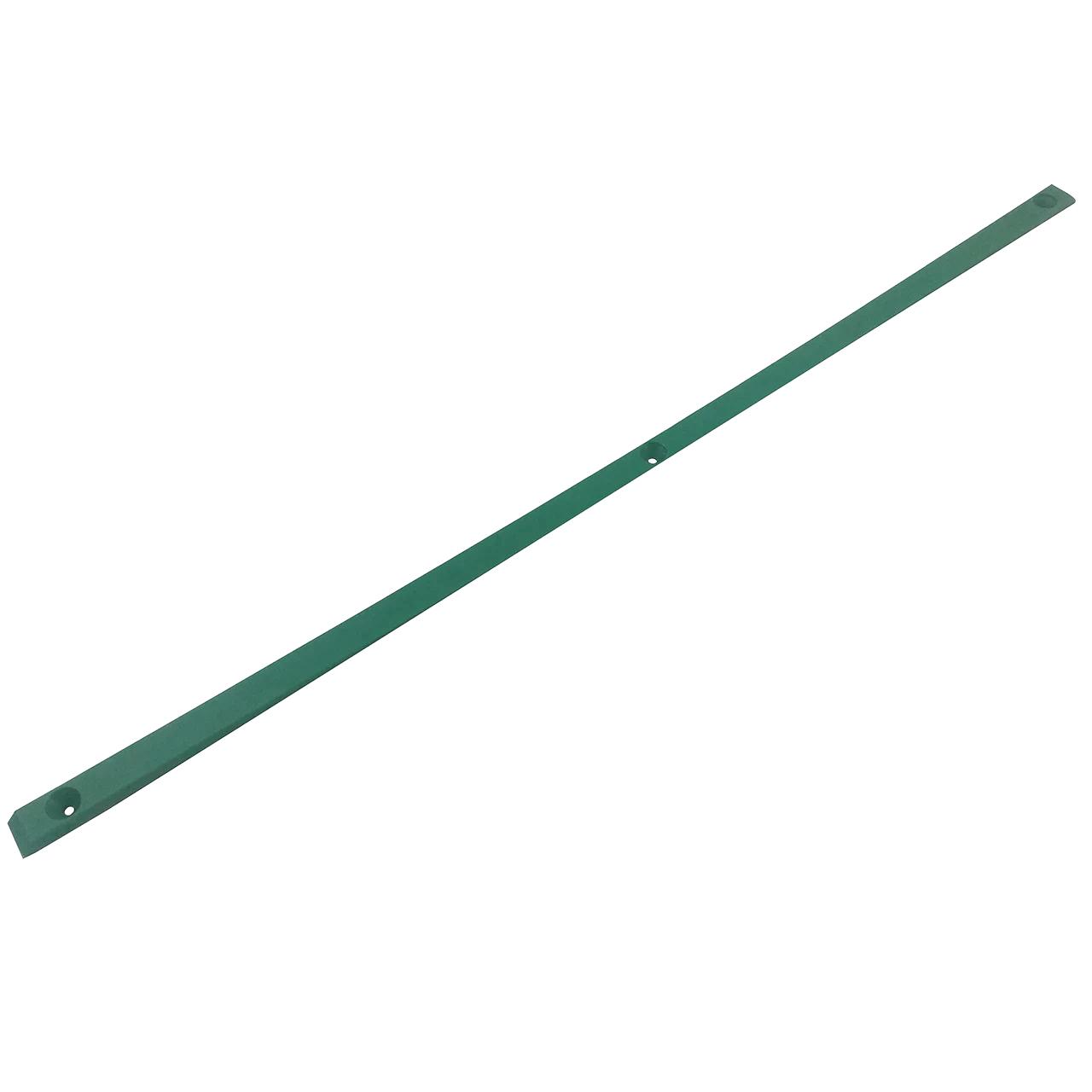

07928 Guide plate

07928 Guide plate

Purpose:

The guide plate is a part used to provide the direction of movement of, or to support, other elements of a structure or mechanism.

Characteristics:

  • Material: Usually made of steel, aluminium or other strong and light materials.   • Shape: Rectangular or square shape with holes for fastening to other elements or surfaces.   • Dimensions: The length, width and thickness may vary depending on the specific application and the requirements of the structure.

Functionality:

  • Direction of movement: Provides the direction of movement for other elements, such as rails, rollers or loads, which allows them to move along a particular path.   • Support: Serves to support or reinforce other elements of the structure, for example travel mechanisms or moving parts.   • Reduced friction: Reduces the friction between the moving parts, which increases the efficiency of the mechanism and extends the service life of its elements.

Advantages:

1. Improved performance: Provides smooth and stable movement of the elements, which increases the productivity and efficiency of the mechanism. 2. Reduced wear: Reduces wear and damage to the elements, since it provides the correct direction and support. 3. Ease of installation: Easily installed and fastened to other elements of the structure with bolts, nuts or other fasteners.
